Engine
Cylinder displacement 88 cm³
Power output 4.8 kW
Maximum power speed 9600 rpm
Fuel tank volume 0.9 l
Idling speed 2700 rpm
Spark plug Champion RCJ7Y, NGK BPMR7A
Electrode gap 0.5 mm
Torque, max. 4.7 Nm
Fuel consumption 476 g/kWh
Fuel consumption 2.26 kg/h
Equipment
Bar length (inch) 24″
Chain pitch 3/8″
Recommended bar length, max 28 in
Recommended bar length, max 70 cm
Recommended bar length, min 18 in
Recommended bar length, min 45 cm
Chain speed at max power 21.4 m/s
Chain speed at 133% of maximum engine power speed 28.5 m/s
Chain gauge 0.058 in
Dimensions
Weight (excl. cutting equipment) 7.2 kg
Lubricant
Oil tank volume 0.5 l
Oil pump type Automatic
Oil pump capacity Max 24 ml/min
Oil pump capacity Min 6 ml/min
Sound and Noise
Sound power level, guaranteed (LWA) 119 dB(A)
Sound power level, measured 117 dB(A)
Sound pressure level at operators ear 107 dB(A)
Vibration
Equivalent vibration level (ahv, eq) front handle 5.8 m/s²
Equivalent vibration level (ahv, eq) rear handle 7 m/s²

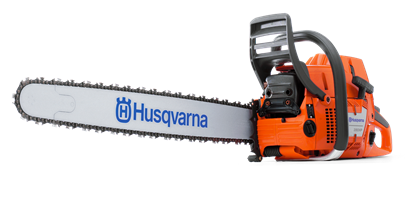

A modern large XP®-saw with a very powerful engine. Performance and vibration damping are dimensioned for sawing jobs that require longer cutting equipment. Good ergonomics and comfort make it easy to handle despite its size and high power. Smart Start® facilitates starting and rubber-mounted carburettor boosts durability and smooths operation.
